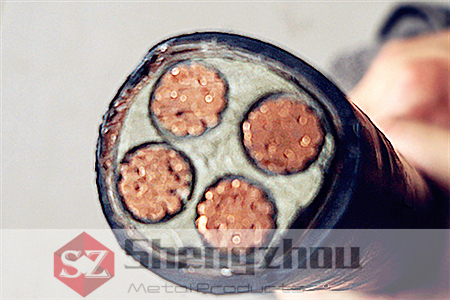

Scope of application: This product is suitable for AC 50 Hz, rated voltage 0.6/1kv line (system voltage 1.2kv) power line transmit electric energy. It is used in fixed applications such as indoors, cable trenches, pipelines, direct burial, etc., which can be used in metallurgy, electric power, construction and other industries and can withstand mechanical external forces.
Product Features: This product has a certain resistance to combustion, the production of raw materials from a wide range of low prices, easy to process and manufacture. This product is equipped with steel tape armor and can withstand large mechanical pressure.
Execution standard: GB/T 12706.1-2008 rated voltage 1kV (Um=1.2kV) to 3kV (Um=3.6kV)
Additional standards:
Rated voltage: The rated voltage of the power frequency AC is 0.6/1kV, and the voltage of the AC system should not exceed 1.2kV.
Operating temperature: The long-term allowable operating temperature of the cable conductor is 70 ℃; when short circuited, the temperature of the cable conductor does not exceed 160 ℃, the duration does not exceed 5 s.
Ambient temperature: The operating temperature of the cable is -10 ℃.
Laying temperature: When installing, the temperature should not be lower than 0 ℃.
Bending radius: The bending radius of a single-core cable does not exceed 15D, and the bending radius of a multi-core cable does not exceed 12D.
