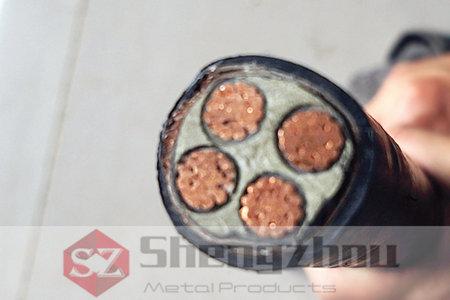

YJV Cable

1.Model and name

YJV: copper core XLPE insulated PVC sheathed power cable

2.Rated voltage

YJV：0.6/1KV

3.Nominal cross section

YJV：3*6+1*4   3*10+1*6 mm2

4.Number of cores

Single core, double core, three core, four core, 3+1 core, 3+2 core, 4+1 core

5.Range of application

Laying in metallurgical, electric power, construction and other industries indoor, cable trenches, pipes, buried directly and can not withstand mechanical external force fixed use.
XLPE insulated power cable has excellent thermo-mechanical performance, excellent electrical performance and chemical corrosion resistance, and has the advantages of simple structure, light weight, and no restrictions on the laying. It is widely used in urban power grids and mines，and the novel cable of the factory.

The insulation-crosslinked polyethylene (XLPE) of the cable is to convert the linear molecular structure of PE into the stereoscopic network by chemical and physical methods, thus greatly improving the thermo-mechanical properties of the PE. Thus maintaining excellent electrical performance. The maximum rated working temperature of the XLPE insulated power cable conductor is 90 °C, which is higher than that of PVC insulation and polyethylene insulated cable, so the current carrying capacity of the cable is further improved.
