ABC Cable Introduction
1.ABC Cable standard: NFC 33209;
2.Voltage class: 1kv;
3.Conductor: aluminum;
4.Insulation: XLPE;
5.XLPE insulated conductor temperature should not exceed 90 ℃.
Short circuit (maximum duration not exceeding 5s) Maximum cable temperature:
XLPE insulated conductor temperature should not exceed 250 ℃.
6.Cable allowable bending radius:
Cable diameter (D) <25mm, should not be less than 4D.
Cable diameter (D) ≧ 25mm, should not be less than 6D.

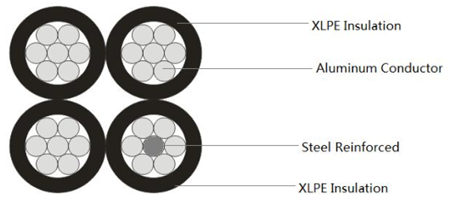

ABC Cable Structure Picture
ABC Cable Technical Specifications
Technical Specifications
|
Type |
ABC Cable, Single Core, Aluminium Conductor, XLPE Insulation
(AL/XLPE) |
Specification |
3x50mm2+25mm2 |
Cable Size (mm) |
NO |
7 |
Cable Diameter (mm) |
3.05 |
Insulation Thickness (mm) |
1.4 |
Conductor Size (mm) |
Aluminum |
6/2.3 |
Steel |
1/2.3 |
Insulation Thickness (mm) |
1.2 |
Cable diameter (mm) |
18.9 |
Cable Weight (kg/km) |
654 |
20 ° С Maximum conductor resistance (Ω/km) |
0.641+1.1478 |
Cable standard |
NFC 33209 |
Voltage class |
1kv |
ABC Cable Packaging Pictures
ABC Cable Applications
Aerial Bundle Cable (ABC cable) is a very innovative concept for overhead power distribution as compared to the conventional bare conductor overhead distribution system. It provides higher level of safety and reliability, lower power losses and ultimate system economy by reducing installation,maintenance and operative cost. The cables are designed for aerial power lines and room-entrance wires with AC rated voltage 1kV and below.
