Duplex Service Drop ABC Cable


Duplex Service Drop ABC Cable Application

Duplex service drop ABC cable is a new type of power transmission overhead cable, which is widely used in overhead power transmission lines, improving the security and reliability of the electrified network.

Duplex Service Drop ABC Cable Construction

The conductors are made of compressed 1350-H19 aluminium strands,the insulating material is polyethylene or crosslinked polyethylene. The neutral messengers are concentrically stranded 6201 series aluminum twisted aluminum(AAC) or steel-cored aluminum stranded wire(ACSR).

ABC Technical Characters Based on Standard

ASTM ANSI/ICEA S-76-474 and NFC 33-209

Duplex Service Drop ABC Cable Specification

Code word	AWG or kcmil	Bare Neutral Messenger		Phase Conductor Code word		Weight (kg/km)
		AAC	Rated strength (1bs)	AAC	Insulation Thick. (mm)
		Stranding and Wires Dia. (mm)		Stranding and Wires Dia. (mm)
Setter	1x6AWG+ 1x6AWG	1/1.68+ 6/1.68	1190	1/4.11	1/4.11	92
Shepherd	1x6AWG+ 1x6AWG	1/1.68+ 6/1.68	1190	7/1.56	7/1.56	94
Eskimo	1x4AWG+ 1x4AWG	1/2.12+ 6/2.12	1860	1/5.19	1/5.19	139
Terrier	1x4AWG+ 1x4AWG	1/2.12+ 6/2.12	1860	7/1.96	7/1.96	141
Chow	1x2AWG+ 1x2AWG	1/2.67+ 6/2.67	2850	7/2.47	7/2.47	216
Bull	1x1/0AWG+ 1x1/0AWG	1/3.37+ 6/3.37	4380	19/1.89	19/1.89	347

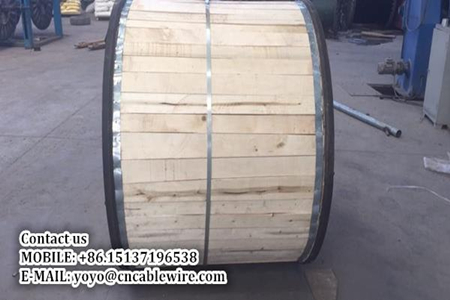

Duplex Service Drop ABC Cable Packaging Pictures
