PVC Flat-Twin Cu Cable

Description

1.Operating temperature: 70℃

2.Rated voltage: 300/500V

3.Standard: JB/T8734.2,BS6004

4.Model: BVVB

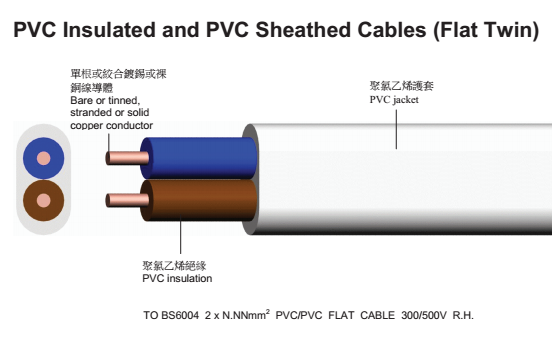

5.Bare or tinned,stranded or solid copper conductor

6.Flame retardant colour-coded PVC insulation

7.Flame retardant PVC jacket

Technical specification


Cross-sectional Area	No. & diameter of wire	Reference overall diameter	Reference weight	Min. insulation resistance at 70℃
mm2	N/mm	mm	Kg/km	MΩ.km
2x0.75	1/0.98	3.8x6.2	42	0.012
2x1.0	1/1.13	4.1x6.6	50	0.011
2x1.5	1/1.38	4.4x7.2	63	0.011
2x2.5	1/1.78	5.2x8.6	93	0.010
2x4.0	7/0.85	6.0x10.4	141	0.0080
2x6.0	7/1.04	7.0x12.4	202	0.0065
2x10	7/1.35	8.6x14.8	315	0.0065

Application

1.Used for fixed wiring

2.Used for high mechanical protection required or humid environment, etc

3.Can be laid out directly or hidden
