ACSR
Standard of ACSR
This product can press GB1179-83, GB/T1179-1999 and Q/SX107-2001 standard and American standard ASTM - B231 manufacturing.The product is suitable for fixed installation transmission power line.Rare earth products conductive performance is good, strong anti-corrosion, acid resistance, is suitable for humid coastal areas.
Product Name and Model
ACSR(JL/G)
|
Nominal Cross Section (mm2) |
Number/Monofilament /Diameter
(mm) |
Aluminum |
Steel |
10/2 |
6/1.50 |
1/1.50 |
16/3 |
6/1.85 |
1/1.85 |
50/8 |
6/3.2 |
1/3.2 |
70/40 |
12/2.72 |
7/2.72 |
95/20 |
7/4.16 |
7/1.85 |
120/70 |
12/3.60 |
7/3.60 |
150/35 |
30/2.50 |
7/2.50 |
185/45 |
30/2.80 |
7/2.80 |
210/50 |
30/2.98 |
7/2.98 |
240/40 |
26/3.42 |
7/2.66 |

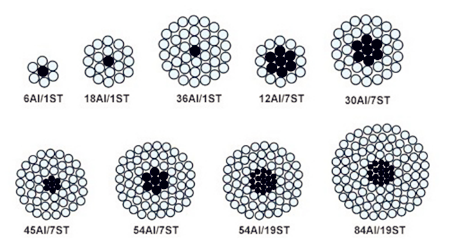

Model Picture of ACSR
Use Features of ACSR
1. ACSR maximum allowable working temperature does not exceed 80 ℃.
2. Laying temperature should not be less than -20 ℃.
3. The wire allows bending radius of 12 times the cable diameter.
Application of ACSR
ACSR used for overhead power transmission and other places, and can withstand considerable tension.
GB standard: GB14049-93
Conductor: aluminium
Bending radius:
Single core: 20 (D + d) ± 5% mm
Multi-core: 15 (D + d) ± 5% mm
